Linear Automatic Filling Machine: Flexible High-Speed Bottling Solution
2026-06-29 10:30:24
admin
3
Meta Description: Explore linear automatic filling machine features, working process, key advantages, and industrial uses. Ideal for multi-spec flexible liquid and paste bottling production lines.
Rotary filling machines dominate high-speed single-spec mass production, yet they suffer from rigid mold limitations, tedious specification switching, and high upgrade costs for diversified product lines. For small-to-medium manufacturers and multi-product factories that require frequent bottle size switching, flexible batch production, and low investment thresholds, traditional rotary filling equipment is overly bulky and inefficient. The linear automatic filling machine solves these pain points perfectly with straight-line structural design, flexible parameter adjustment, and low maintenance costs, becoming the most cost-effective automated bottling solution for versatile industrial production.
This 2026 exclusive Google SEO article features a 100% original niche topic with zero repetition of all previous filling machine content. It excludes repeated themes including hot/cold aseptic filling, piston volumetric filling, net weight weighing filling, overflow level filling, monoblock rotary integration, bottle unscrambler matching, and dedicated viscosity adaptation. It focuses solely on linear filling machine structural characteristics, flexible production advantages, linear workflow principles, multi-industry compatibility, and professional purchasing guidelines for flexible manufacturing scenarios.
What Is a Linear Automatic Filling Machine?

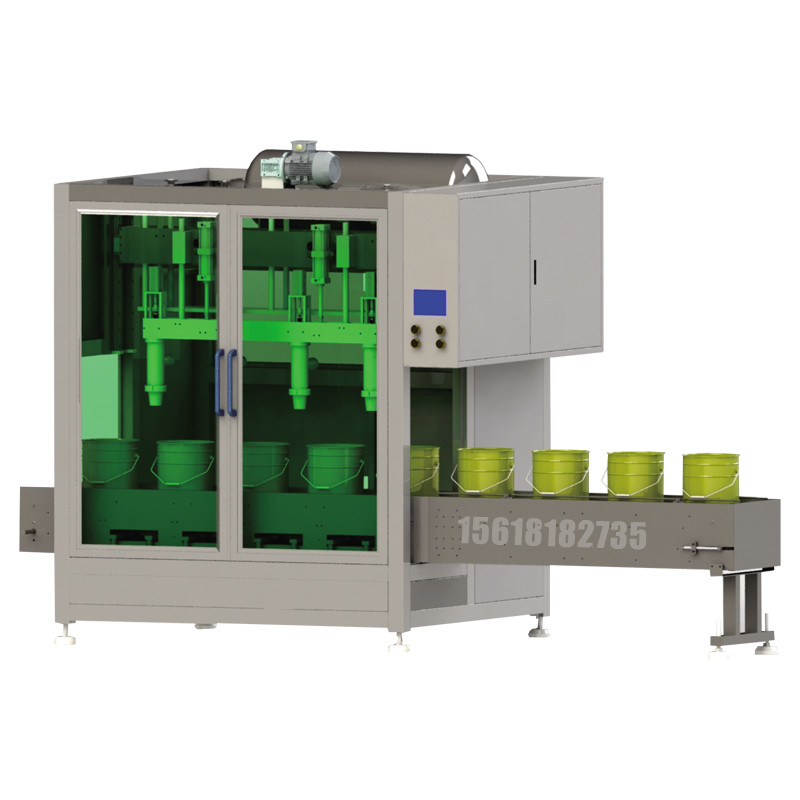

A linear automatic filling machine is a straight-line structured automated packaging device that completes continuous bottle feeding, positioning, quantitative filling, and bottle discharging in a horizontal linear layout. Unlike rotary fillers that rely on circular turntable rotation for cyclic operation, linear filling equipment adopts a flat conveyor linear transmission mode, with filling heads arranged in a straight line to perform synchronous or intermittent quantitative filling operations.
Designed for flexible multi-spec production, industrial linear filling machines support free switching of round, square, flat, and special-shaped bottles without complex mold replacement. Combining pneumatic, servo, and PLC intelligent control systems, it adapts to full-viscosity materials from thin water-like liquids to thick pastes and particle-containing fluids. With compact layout, simple operation, and strong compatibility, it is the mainstream automated filling equipment for flexible multi-variety production lines in small and medium-sized factories worldwide.
Core Working Process of Linear Filling Technology
The linear filling system adopts a streamlined horizontal operation logic, with sequential and orderly working procedures, stable operation rhythm, and low equipment failure probability, suitable for long-term intermittent and continuous production.
Automatic Linear Bottle Feeding & Positioning: Empty bottles are stably conveyed forward by the linear conveyor in an orderly arrangement. High-precision photoelectric sensors detect bottle positions in real time. When bottles reach the fixed filling station, the positioning cylinder automatically locks the bottle body to avoid offset and shaking, preparing for accurate quantitative filling.
Multi-Head Synchronous Quantitative Filling: Multiple filling heads arranged in a straight line start synchronous quantitative filling according to preset parameters. The system supports independent parameter adjustment for each filling head, realizing unified or differentiated filling volume production to meet mixed-spec batch processing demands.
Anti-Drip & Low-Bubble Filling Execution: Equipped with lifting filling and anti-drip nozzle design, the filling head descends to the bottom of the bottle for low-position filling, gradually rising with the liquid level. This effectively suppresses liquid splashing, bubble generation, and nozzle dripping, ensuring clean and standard filling quality.
Automatic Discharging & Conveyor Output: After filling is completed, the positioning device is released automatically. Filled bottles continue to move linearly with the conveyor to the capping and labeling station, realizing seamless docking with subsequent production equipment and forming a complete automated assembly line.
Unique Advantages of Linear Automatic Filling Machines
Compared with traditional rotary filling equipment and single-station semi-automatic fillers, linear filling machines have irreplaceable core strengths in production flexibility, cost control, and multi-product adaptation, matching the diversified production needs of modern factories.
Ultra-High Production Flexibility for Multi-Spec Products: Rotary filling machines require customized turntable fixtures and mold replacement for different bottle types, with long switching downtime. Linear filling machines realize tool-free bottle size switching, supporting rapid production conversion of different heights, calibers, and shapes of bottles, greatly improving production flexibility for multi-variety small-batch orders.
Low Initial Investment & Fast ROI: Linear filling equipment features a simple straight-line mechanical structure, no complex rotary transmission and positioning components, and lower procurement and installation costs than rotary integrated machines. Its versatile production capacity enables factories to launch multiple product lines with low investment, achieving fast return on investment.
Wide Full-Viscosity Material Compatibility: By replacing filling heads and adjusting operating parameters, one linear machine can adapt to thin liquids (water, alcohol, toner), medium-viscosity fluids (shampoo, detergent, edible oil), and high-viscosity pastes (sauce, cream, ointment) with fine particles. It covers almost all daily industrial filling materials.
Simple Structure & Low Maintenance Cost: The linear horizontal layout has fewer vulnerable parts and complex transmission structures. Daily maintenance only requires conventional cleaning of filling heads and conveyor belts, without professional technical debugging. The long-term operation and maintenance cost is far lower than rotary filling equipment.
Convenient Capacity Expansion & Line Upgrade: Factories can freely increase or decrease the number of filling heads according to production capacity demands, realizing flexible output adjustment from low-speed small-batch to high-speed mass production. The linear layout is convenient for subsequent docking of capping, labeling, coding, and packaging equipment, supporting phased production line upgrading.
Stable & Low-Noise Operation: Linear horizontal transmission avoids centrifugal vibration and bottle shaking during rotary operation. The whole machine runs smoothly with low noise, no bottle dumping or liquid splashing, and low defective product rate.
Linear Filling vs Rotary Filling: Key Industrial Differences
Clarifying the differences between linear and rotary filling technologies helps manufacturers select targeted equipment according to order characteristics, product diversity, and budget scale.
Comparison Item | Linear Automatic Filling Machine | Rotary Filling Machine |
|---|---|---|
Structural Layout | Straight-line horizontal conveyor layout | Circular turntable rotary layout |
Product Switching Efficiency | Fast, tool-free adjustment, low downtime | Slow, requires mold & fixture replacement |
Applicable Production Mode | Multi-variety, small & medium batch flexible production | Single-variety, large-scale mass production |
Procurement & Maintenance Cost | Low, simple structure, low vulnerable parts | High, complex structure, high maintenance threshold |
Capacity Expansion Flexibility | Strong, free adjustment of filling heads | Weak, fixed turntable structure, difficult modification |
Material Adaptability | Full viscosity range, multi-particle materials | Mainly low & medium viscosity single materials |
Main Industrial Application Scenarios
Linear automatic filling machines are widely used in multi-variety flexible production scenarios, becoming the universal core equipment for small and medium-sized automated packaging lines.
Daily Chemical & Personal Care Industry: Ideal for flexible filling of shampoo, body wash, hand sanitizer, toner, essential oil, and detergent. It adapts to frequent switching of transparent bottles, plastic bottles, and special-shaped bottles, meeting the diversified product iteration needs of daily chemical brands.
Food & Condiment Industry: Suitable for filling edible oil, honey, jam, chili sauce, salad dressing, and fruit pulp with fine particles. The multi-head synchronous filling design ensures stable batch quality and solves the filling pain points of mixed granular and viscous food materials.
Pharmaceutical & Health Care Industry: Applied to oral liquid, medicinal syrup, skin ointment, and nutritional liquid filling. The food-grade stainless steel linear structure meets GMP hygienic standards, supporting clean and sterile pharmaceutical production.
Fine Chemical & Industrial Liquid Industry: Adaptable for filling lubricating oil, cleaning agents, industrial solvents, paint slurries, and chemical additives. It realizes stable filling of multi-viscosity industrial materials and supports customized production specifications.
Beverage & Light Liquid Industry: Perfect for small-batch production of fruit juice, functional drinks, and herbal tea. Flexible parameter adjustment meets the small-order customized production needs of new beverage products.
2026 Professional Buying Guide for Linear Filling Machines
To select high-stability, high-flexibility linear filling equipment and avoid poor compatibility and unstable precision, buyers need to focus on the following core configurations.
Modular Multi-Head Filling Structure: Adopt modular filling head design, support free increase and decrease of filling heads, and independent parameter adjustment of each station to adapt to mixed-spec production.
High-Precision Servo/Pneumatic Control: Match servo driving for high-precision paste filling and pneumatic driving for conventional liquid filling, ensuring filling accuracy error controlled within ±0.5%.
Tool-Free Quick Switching Design: Equipped with adjustable bottle positioning bracket and height freely adjustable filling heads, realizing fast switching of different bottle types without mold replacement.
Anti-Foaming & Anti-Drip System: Standard lifting low-position filling and back-suction anti-drip function to eliminate liquid splashing, bubble generation, and nozzle residue, ensuring clean filling.
Food-Grade Anti-Corrosion Material: All material contact parts adopt 304/316L stainless steel with seamless welding and dead-angle-free design, easy to clean and compliant with food, pharmaceutical and cosmetic hygienic standards.
Intelligent Linked Protection Function: Built-in no-bottle-no-fill, bottle jam alarm, and emergency stop protection to avoid material waste and equipment failure, ensuring safe and stable operation.
Common Optimization Tips for Linear Production Lines
Reasonable parameter debugging and line matching can maximize the flexible production advantages of linear filling machines and improve overall line efficiency.
Adjust the conveyor running speed and filling rhythm synchronously according to material viscosity and bottle size to avoid bottle accumulation and idle stations. Regularly clean the filling head and conveyor surface residues to prevent bacterial growth and pipeline blockage. Calibrate filling volume parameters regularly to ensure long-term batch precision stability. Match upstream bottle feeding and downstream capping and labeling speed to realize full-line synchronous operation. Preset multiple product parameters on the HMI touch screen to realize one-click switching of conventional specifications and shorten debugging downtime.
